A dipole moment measures the separation of positive and negative electrical charge within a bond or molecule. It describes both the strength and direction of that separation, helping chemists determine whether a molecule is polar or nonpolar.
In the study of chemistry, dipole moments explain why electrons are distributed unevenly in some molecules and how those molecules interact with each other. Dipole moments help chemists understand molecular polarity, intermolecular forces, solubility, and chemical reactions.
Water provides a familiar example. Its oxygen atom attracts shared electrons more strongly than its hydrogen atoms, and the molecule’s bent shape creates a net dipole moment. Carbon dioxide also contains polar bonds, but its linear shape causes their dipoles to cancel.
What Is a Dipole Moment?
A dipole moment is a measure of how far positive and negative charges are separated and how much charge is involved. In a simple model containing two equal but opposite charges, the magnitude of the dipole moment is calculated by multiplying the charge magnitude by the distance between them.
When electrons are distributed unevenly, a molecule can develop two regions:
- A partially negative region (δ−), where electron density is greater.
- A partially positive region (δ+), where electron density is lower.
In simple terms, it tells chemists how polar a molecule is. A nonzero permanent dipole moment indicates an uneven overall charge distribution, while a zero permanent dipole moment means the positive and negative charge centers coincide.
Understanding bond polarity helps explain the difference between an individual polar bond and the overall polarity of a molecule containing several bonds.
How Dipole Moments Form in Chemical Bonds
Dipole moments arise from unequal electron sharing in polar bonds. When two bonded atoms attract electrons with different strengths, the shared electron density shifts toward the more electronegative atom.
For example, hydrogen chloride (HCl) contains a bond between hydrogen and chlorine. Chlorine attracts the bonding electrons more strongly, giving chlorine a partial negative charge and hydrogen a partial positive charge.
The resulting bond dipole points toward chlorine in the usual chemistry arrow notation. In molecules with several bonds, these individual dipoles must be combined to determine the overall molecular dipole moment.
Three Factors That Affect Dipole Moments
1. Electronegativity Difference
The larger the electronegativity difference between atoms, the greater the electron displacement. This often increases bond polarity, although the actual dipole moment also depends on the amount of charge separation and bond length.
For example, chlorine attracts shared electrons more strongly than hydrogen in HCl. By contrast, a bond between identical atoms, such as the bond in H₂, has no permanent bond dipole because the atoms have equal electronegativity.
2. Distance Between Charges
Dipole moment depends on both the amount of separated charge and the distance between the charge centers. For the same charge magnitude, increasing that distance increases the dipole moment.
However, a longer chemical bond does not automatically have a larger dipole moment. Different bonds can have different degrees of charge separation, so both factors must be considered.
3. Molecular Geometry
Molecular shape determines whether individual bond dipoles reinforce one another or cancel. Dipole moments are vectors, meaning they have both magnitude and direction.
A symmetrical molecule can contain polar bonds yet have no overall dipole moment. In an asymmetrical molecule, the bond dipoles may combine to produce a measurable net dipole.
Dipole Moments in Polar and Nonpolar Molecules
Polar molecules have a nonzero permanent dipole moment because their overall charge distribution is uneven. Nonpolar molecules have no permanent net dipole moment, either because their bonds are nonpolar or because their bond dipoles cancel.
| Molecule | Shape | Net Dipole |
|---|---|---|
| Water (H₂O) | Bent | Nonzero |
| Ammonia (NH₃) | Trigonal pyramidal | Nonzero |
| Hydrogen chloride (HCl) | Linear, two atoms | Nonzero |
| Carbon dioxide (CO₂) | Linear | Zero |
| Methane (CH₄) | Tetrahedral | Zero |

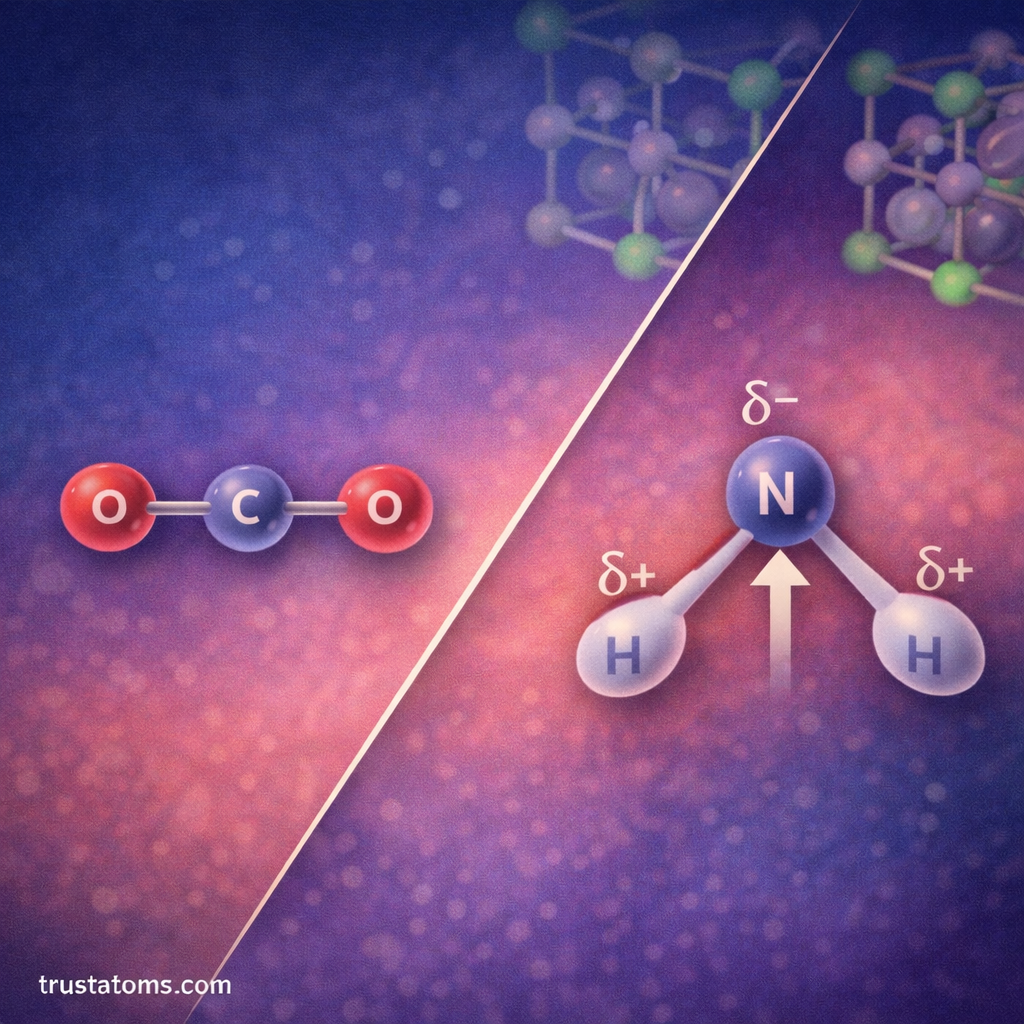

Carbon dioxide is a particularly useful example. Its two C=O bonds are polar, but they point in opposite directions along a straight line. Their equal dipole contributions cancel, leaving the molecule without a permanent net dipole moment.
Ammonia has a trigonal pyramidal shape, so its bond dipoles do not cancel. The molecule therefore has a net dipole moment.
How Dipole Moments Are Measured
The standard SI unit of electric dipole moment is the coulomb-meter (C·m). Chemists commonly use the debye (D), a smaller unit convenient for molecular measurements.
One debye is approximately 3.336 × 10⁻³⁰ C·m. Typical gas-phase molecular dipole moments include:
- Water (H₂O): approximately 1.85 D.
- Hydrogen chloride (HCl): approximately 1.08 D.
- Ammonia (NH₃): approximately 1.47 D.
- Carbon dioxide (CO₂): 0 D.
These values describe permanent molecular dipoles. The measured dipole moment can depend on the molecular environment, and even nonpolar molecules can develop temporary or induced dipoles.
Worked Example: Calculating a Simple Dipole Moment
Imagine two opposite charges, each with a magnitude of one elementary charge, separated by 0.10 nanometers. The elementary charge is approximately 1.602 × 10⁻¹⁹ coulombs, and 0.10 nanometers equals 1.0 × 10⁻¹⁰ meters.
For this idealized two-charge system, the dipole moment magnitude is:
μ = q × r
μ = (1.602 × 10⁻¹⁹ C) × (1.0 × 10⁻¹⁰ m) = 1.602 × 10⁻²⁹ C·m
Dividing by 3.336 × 10⁻³⁰ C·m per debye gives approximately 4.80 D.
This is a simplified model with fully separated charges. Real covalent bonds generally involve partial charges and distributed electron density, so their dipole moments cannot always be calculated accurately by treating atoms as two point charges.
How Dipole Moments Influence Molecular Properties
Intermolecular Attractions
Polar molecules can attract one another through dipole-dipole interactions. These attractions influence boiling points, melting points, and other physical properties, alongside dispersion forces and hydrogen bonding where applicable.
For example, water molecules experience strong hydrogen-bonding interactions associated with their polar O-H bonds. These interactions contribute to water’s relatively high boiling point for such a small molecule.
Solubility and Dissolving Substances
Dipole moments help explain why polar solvents often dissolve polar substances. Water’s uneven charge distribution allows it to interact with ions and many polar molecules.
For instance, water molecules surround sodium and chloride ions when table salt dissolves. Their partial charges interact with the ions, helping stabilize them in solution.
Nonpolar oils generally mix poorly with water because the interactions formed between oil and water do not sufficiently compensate for disrupting interactions within the separate liquids.
Chemical Reactions and Biological Molecules
Regions of partial positive and negative charge influence how molecules approach and react with one another. For example, electron-rich substances may be attracted to electron-poor regions of another molecule.
Polar interactions also contribute to the structures and functions of proteins, enzymes, DNA, and cell membranes. However, these biological systems depend on several kinds of interactions, not dipole moments alone.
How Chemists Draw Dipole Arrows
In common chemical diagrams, a bond dipole is shown with an arrow pointing toward the more electronegative, partially negative end. A small crossed tail marks the partially positive end.
For hydrogen chloride, the chemical dipole arrow points from hydrogen toward chlorine. This chemistry convention should not be confused with the direction of the electric dipole moment vector in physics, which is defined from negative charge toward positive charge.
Frequently Asked Questions
Does a polar bond always make a molecule polar?
No. A molecule can contain polar bonds but have no permanent net dipole moment if the bond dipoles cancel because of its geometry. Carbon dioxide is a familiar example.
What does a dipole moment of zero mean?
A zero permanent dipole moment means the molecule has no overall separation between its centers of positive and negative charge. It does not mean the molecule contains no electrons, no charges, or no intermolecular attractions.
Why does water have a dipole moment?
Oxygen attracts the bonding electrons more strongly than hydrogen, making both O-H bonds polar. Because water has a bent molecular shape, the two bond dipoles do not cancel, producing a net dipole moment of approximately 1.85 D in the gas phase.
Dipole moments connect the distribution of electrical charge with the three-dimensional shapes of molecules. Water’s bent geometry produces a measurable dipole, while carbon dioxide’s linear symmetry cancels its bond dipoles. Understanding this difference helps explain molecular polarity, solubility, and the attractions between substances.
Sources: OpenStax, Chemistry 2e; Peter Atkins, Julio de Paula, and James Keeler, Atkins’ Physical Chemistry; IUPAC, Compendium of Chemical Terminology (Gold Book).
