Crystal structure in chemistry describes the ordered, repeating arrangement of atoms, ions, or molecules within a crystalline solid. This three-dimensional arrangement determines how particles are positioned relative to one another and helps explain a material’s physical and chemical properties.
Crystal structure connects the study of chemistry and matter with the behavior of familiar materials such as table salt, metals, diamonds, and quartz. Although these substances differ in composition, their internal atomic arrangements help determine characteristics such as hardness, conductivity, and melting temperature.
What Is a Crystal?
A crystal is a solid whose constituent particles follow a regular, repeating arrangement extending in three dimensions. This long-range order distinguishes crystalline materials from solids whose particles lack a repeating structure.
Common examples include table salt, sugar, quartz, diamond, and crystalline metals such as copper. Under suitable growth conditions, crystals can develop flat faces and recognizable geometric shapes that reflect their internal symmetry.
The study of solid-state chemistry in crystalline materials examines how atomic arrangements, chemical composition, and bonding influence the behavior of these solids.
One way to describe a particle’s local environment is its coordination number, which identifies how many nearest neighbors surround a particular atom or ion.
In ionic crystals, lattice energy helps explain the energetic stability of the ionic arrangement. In metals, metallic bonding in solid materials helps explain how atoms remain connected while allowing electrons to move through the structure.
More complex arrangements, including porous networks of connected building blocks, are explored in advanced inorganic frameworks in materials science.
The Crystal Lattice and Repeating Atomic Patterns
A crystal lattice is a mathematical framework of regularly spaced points that describes the repeating positions within a crystal. Each lattice point has an identical surrounding environment, and an atom or group of atoms associated with every point produces the complete crystal structure.
The distinction matters: a lattice describes periodic geometry, while a crystal structure includes the actual arrangement of atoms associated with that geometry. For a closer examination of these patterns from a physics perspective, see crystal lattice structures in solid-state physics.
How a Unit Cell Defines a Crystal
A unit cell is a repeating volume that can be translated in three dimensions to reproduce a crystal’s entire structure. It is described by three edge lengths, designated a, b, and c, and three angles, alpha, beta, and gamma.
For example, sodium chloride has a cubic crystal structure with a conventional unit-cell edge length of approximately 0.564 nanometers at room temperature. Its structure contains alternating sodium and chloride ions arranged so that each sodium ion has six nearest chloride neighbors, and each chloride ion has six nearest sodium neighbors.
This example shows how an extremely small repeating arrangement can describe the organization of ions throughout an ordinary grain of table salt.
Common Types of Crystal Structures
Crystals belong to seven crystal systems, classified according to unit-cell geometry and symmetry. Three useful examples are cubic, hexagonal, and tetragonal structures.
Cubic Crystal Structures
Cubic unit cells have three equal edges meeting at right angles. Common cubic Bravais lattices include primitive cubic, body-centered cubic (BCC), and face-centered cubic (FCC). These differ in the positions of their lattice points.
Copper has an FCC structure, while iron has a BCC structure at ordinary temperatures. Sodium chloride has an FCC Bravais lattice with a two-ion basis.
Hexagonal Crystal Structures
Hexagonal unit cells have two equal horizontal axes separated by 120 degrees and a third axis perpendicular to them. Magnesium and zinc exhibit hexagonal close-packed atomic arrangements, while graphite has a layered hexagonal structure.
Tetragonal Crystal Structures
Tetragonal unit cells have three perpendicular axes, with two equal edge lengths and a different third length. White tin and rutile, a crystalline form of titanium dioxide, are examples of materials with tetragonal structures.
How Crystal Structure Changes Material Properties
The positions of particles and the bonds between them influence how a material responds to mechanical forces, heat, light, and electricity. Two substances with identical chemical compositions can behave differently when their atomic arrangements differ.
Diamond and graphite demonstrate this contrast. Both consist of carbon, but diamond contains a three-dimensional network of strong covalent bonds, making it exceptionally hard. Graphite contains strongly bonded carbon sheets held together by weaker interactions, allowing the layers to slide past one another.
Crystal orientation also affects properties. Some crystals conduct heat, transmit light, or resist deformation differently depending on the direction in which those properties are measured. This directional dependence is called anisotropy.

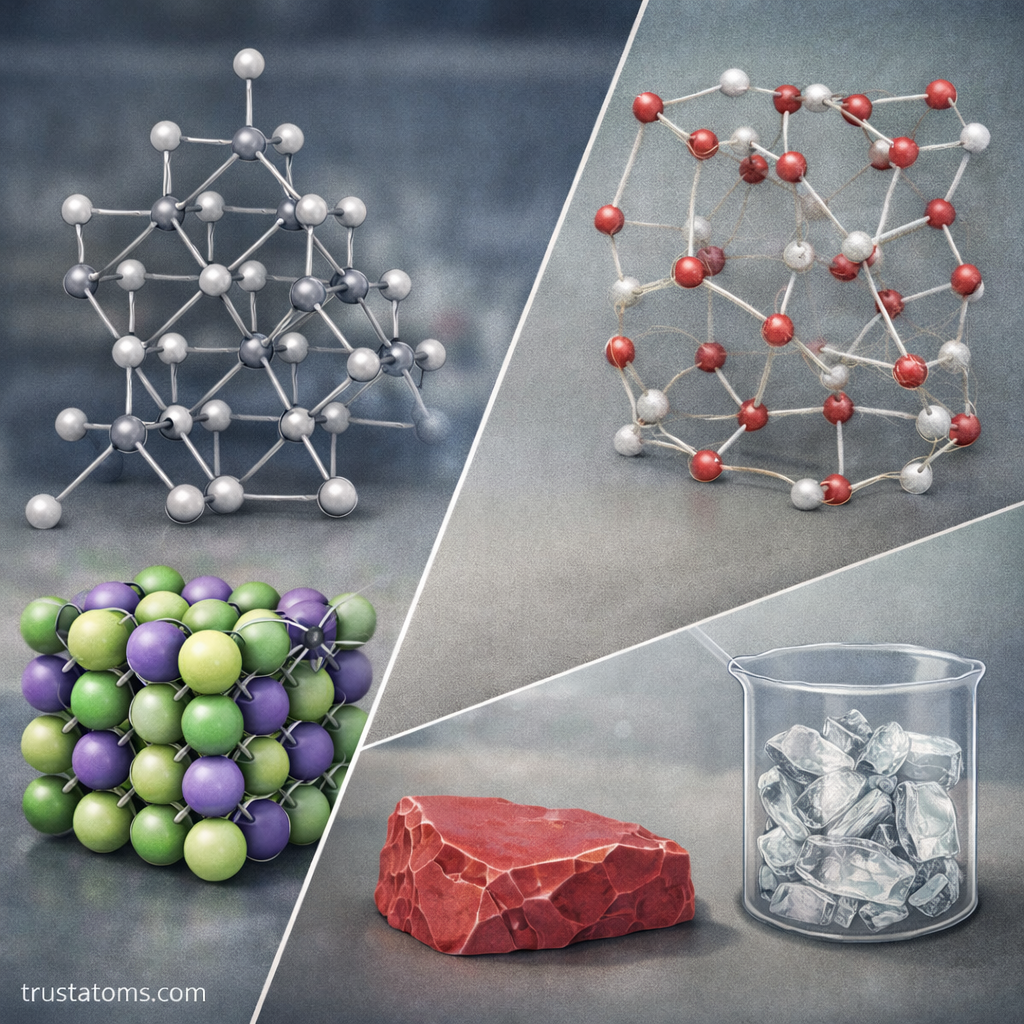

Crystalline Solids Compared With Amorphous Solids
Not every solid contains a repeating crystal lattice. Solids can be distinguished by whether their particles exhibit long-range structural order.
| Property | Crystalline solids | Amorphous solids |
|---|---|---|
| Atomic arrangement | Repeating long-range order | No long-range periodic order |
| Melting behavior | Often a distinct melting temperature when pure | Typically soften over a temperature range |
| Directional properties | May vary with crystal orientation | Often similar in all directions |
| Examples | Quartz, salt, diamond | Window glass, many plastics |
Amorphous solids can still possess local atomic order. For example, silicon and oxygen atoms in ordinary glass maintain characteristic chemical bonds even though their arrangement does not repeat periodically over long distances.
How Scientists Determine Crystal Structures
Scientists use diffraction techniques to investigate arrangements too small to observe with ordinary optical microscopes.
X-ray Diffraction
X-rays scatter from electrons within a crystal, producing diffraction patterns related to its repeating atomic arrangement. Researchers analyze these patterns to determine unit-cell dimensions, symmetry, and atomic positions. The technique is widely used for minerals, metals, and crystalline biological molecules.
Electron and Neutron Diffraction
Electron diffraction is useful for investigating small crystals and thin materials. Neutron diffraction provides complementary structural information and can be particularly valuable for locating light atoms, including hydrogen, and studying magnetic arrangements.
Applications in Electronics, Medicine, and Engineering
Crystal structures influence how materials are selected and manufactured. Silicon’s crystalline arrangement supports the electronic behavior needed for semiconductor devices, while the structures of metals and alloys affect their strength and deformation.
In pharmaceuticals, a drug compound may crystallize in more than one arrangement, a phenomenon called polymorphism. Different crystal forms can have different solubilities and stability, affecting formulation and manufacturing decisions. Mineralogists also use crystal structure alongside chemical composition to identify and classify minerals.
Frequently Asked Questions
What is the difference between a crystal lattice and a unit cell?
A crystal lattice is the repeating mathematical pattern of points, while a unit cell is a defined volume that reproduces the pattern when translated through space. The atomic basis associated with the lattice determines the actual crystal structure.
Can the same element have different crystal structures?
Yes. Carbon forms diamond and graphite, which have different atomic arrangements and properties. Iron also changes its crystal structure with temperature, demonstrating that crystal structure can depend on physical conditions.
Are all solids crystalline?
No. Glass and many polymers are amorphous, meaning they lack the long-range repeating order of crystals. Some materials also contain both crystalline and amorphous regions.
Crystal structure explains why the same chemical elements can produce materials with very different properties. By examining unit cells, bonding, and atomic arrangements, scientists can connect microscopic structure to observable behavior and make informed choices when developing new materials.
Sources: International Union of Crystallography, International Tables for Crystallography; William D. Callister Jr. and David G. Rethwisch, Materials Science and Engineering: An Introduction; Charles Kittel, Introduction to Solid State Physics.
